Reinforced bearing for Pressure Bridge in diecut station

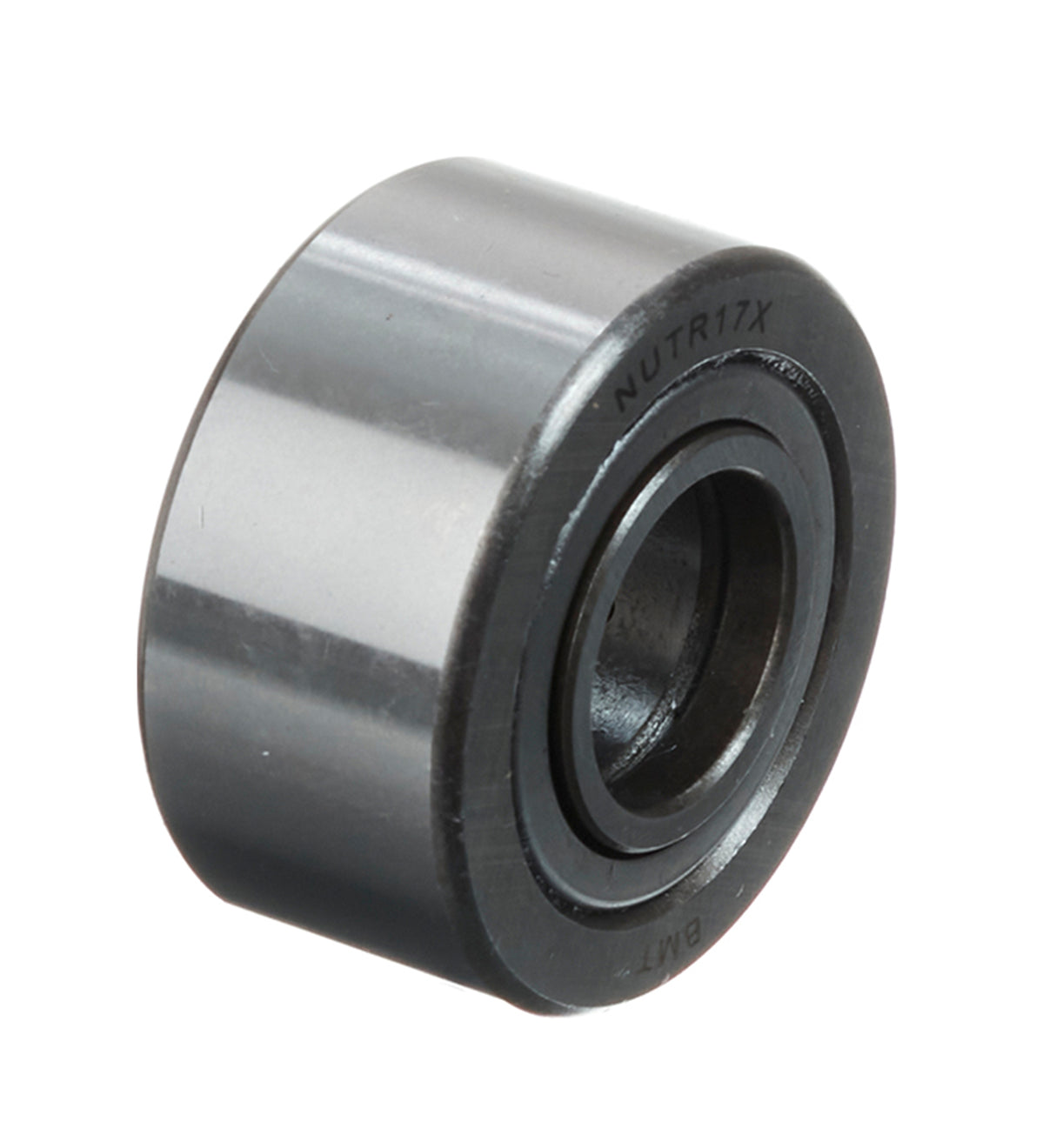

The support roller (yoke-type track roller) features flange rings, integral sealing, and a relubrication capability.

Designed for use on various tracks, cam drives, and conveyor systems, it is based on a double-row full complement cylindrical roller bearing with an inner ring. Its thick-walled outer ring has a cylindrical running surface, ensuring durability and high radial load capacity.

The bearing is sealed for enhanced reliability and supplied ready for mounting. The inner ring includes a lubrication hole for easy relubrication, allowing it to accommodate relatively heavy axial loads caused by skew or tilting, ensuring long service life.

Specification:

• Inner diameter (ID): 17 mm
• Outer diameter (OD): 40 mm
• Total width: 21 mm
• Bore type: parallel
