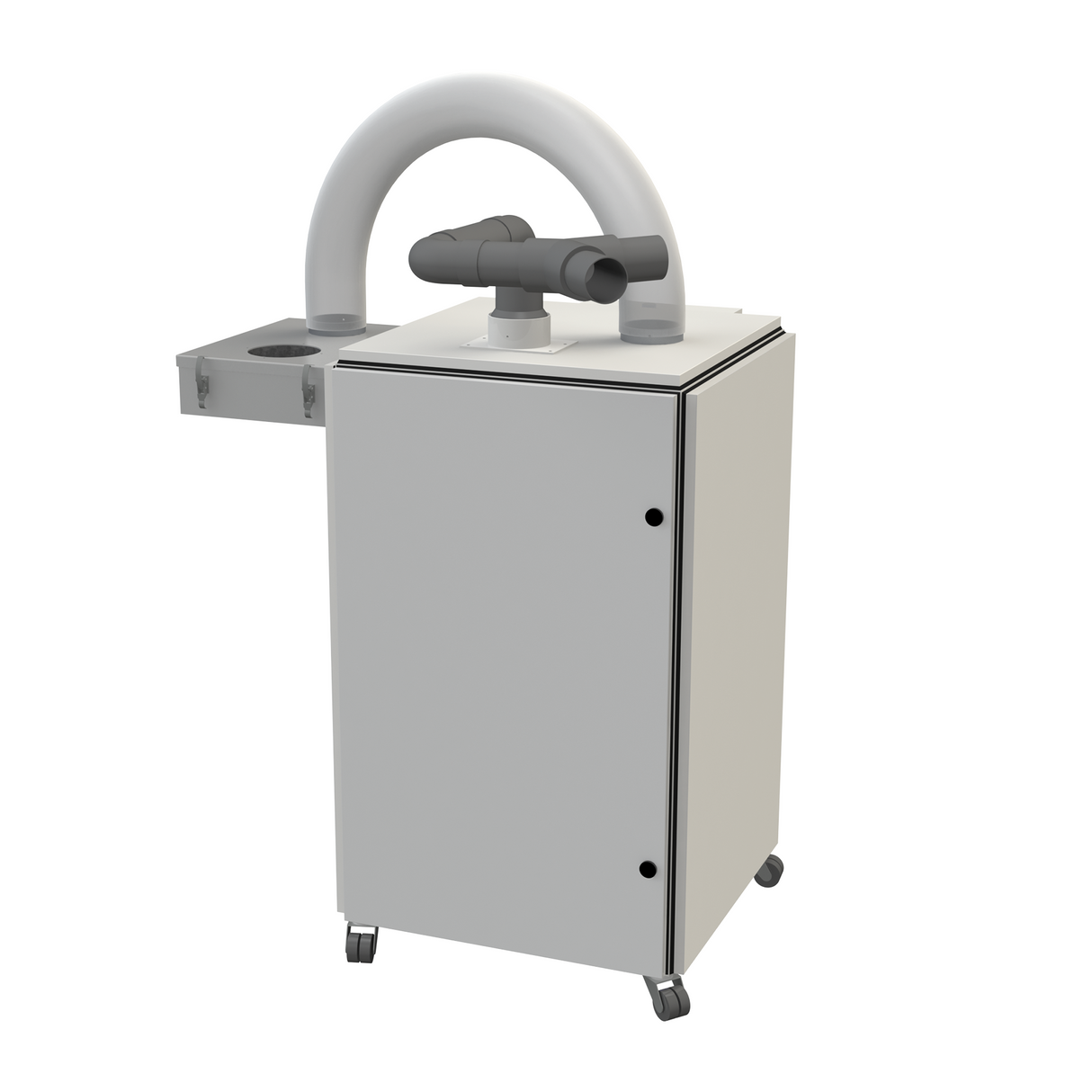

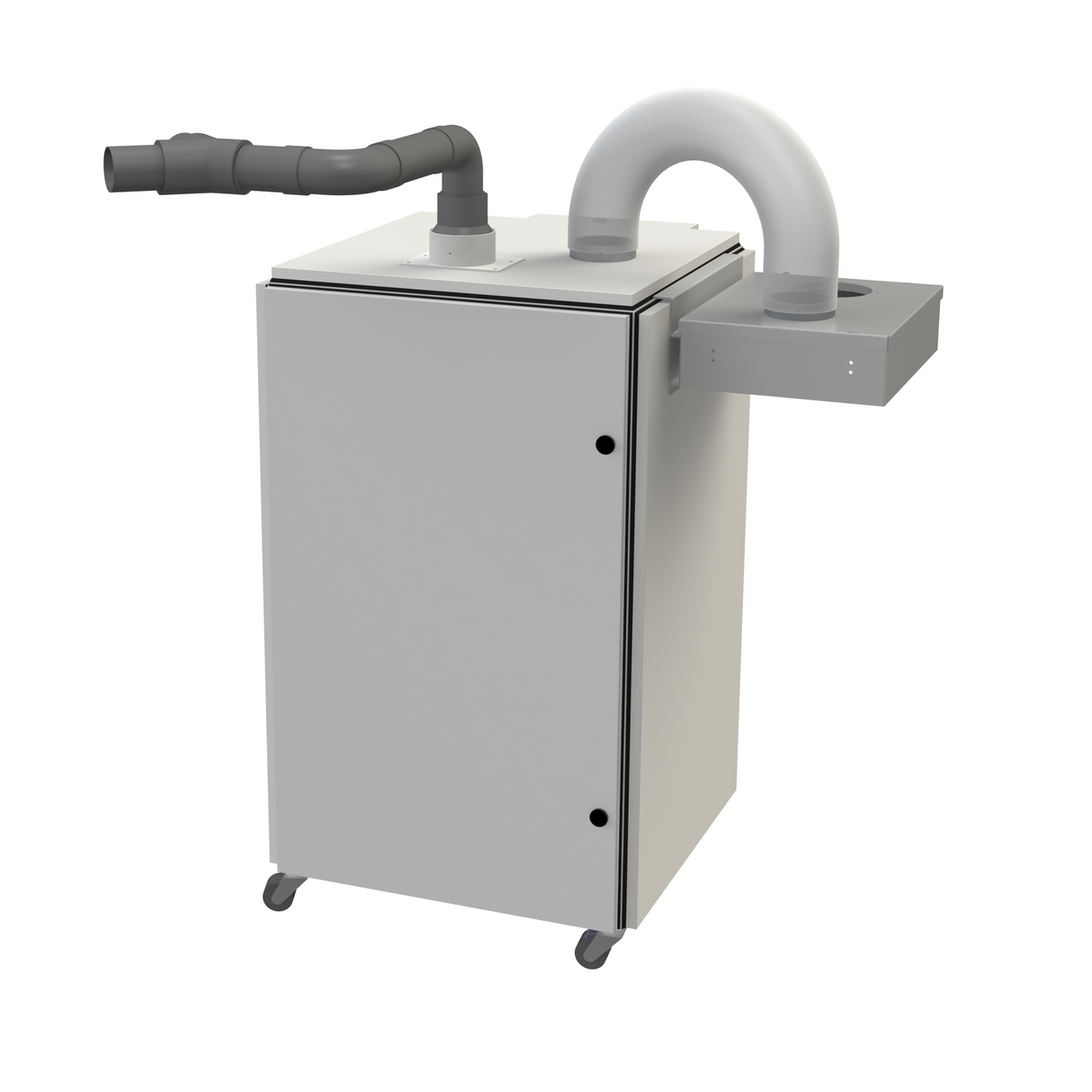

GR80K - compact waste shredder
GR80K - compact waste shredder is backordered and will ship as soon as it is back in stock.
GR80K - compact waste shredder
GR80K is a compact waste shredder that provides the collection of waste from 2 machines.
The GR80K is specially designed for inline use with printing presses or slitters. It efficiently shreds various materials including paper, foil, film, plastics, and cartons, and reduces them to only a few percent of the original volume.
The GR80K combines a shredder with a built-in waste removal unit with heavy suction power and provides connections for two machines. The included Waste Bag System allows the use of canvas bags for shredded material.
An optional lubrication system can be added to use for materials with adhesive to prevent glue buildup on the knives. Can be easily integrated into the existing setup thanks to the small footprint.
The shredder reduces the risk of contamination compared to a conventional Venturi Extraction system by operating in a closed system. It also provides trouble-free installation both in Europe and America, thanks to a compatible power supply.
| SPECIFICATIONS | METRIC | IMPERIAL |
|---|---|---|
| Max. trim width | 30 mm | 1.2" |
| Max. trim extraction speed | 200 m/min | 656 ft/min |
| Connection tube diameter | 2 x 63 mm / 1 x 90 mm | 2 x 2.5" / 1 x 3.5" |
| Dimensions (l x w x h) | 0.95 x 0.86 x 1.27 m | 3.1 x 2.8 x 4.2 ft |
Video of GR80K - compact waste shredder
